Vysielačka NEW CRT SS 8900
AM / FM / LSB / USB / CW
28-29.7 MHz
Receptor VHF FM 136-174 MHz
60W with modulation AM / 50W FM / 60W SSB
LARGE LCD frequency display
Ultra compact size !
NEW 100% reception technology
28-29.7 MHz
Receptor VHF FM 136-174 MHz
60W with modulation AM / 50W FM / 60W SSB
LARGE LCD frequency display
Ultra compact size !
NEW 100% reception technology
215,50 €
175,20 € bez DPH
Popis
- AM / FM / LSB / USB / CW
- 28-29.7 MHz
- Receptor VHF FM 136-174 MHz
- 60W with modulation AM / 50W FM / 60W SSB
- LARGE LCD frequency display
- Ultra compact size !
- NEW 100% reception technology
Data sheet
| Norm | AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory) |
| Mode | AM / FM / LSB / USB / CW |
| Frequency range | 28 - 29.7 mHz |
| Receptor | VHF FM 136-174 mHz (possibility of 99 memories) |
| Power | 60W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB) |
| Input voltage | 13.8V DC |
| Memories | 6 |
| Step of increment | 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz |
| S-METER | AGC S-METER SPEED : 2 levels available |
| CLARIFIER | Yes : clarifies the voice in SSB (range ± 500Hz/± 5kHz)) |
| RELAY MOD / OFFSET / SPLIT | Yes : allows to enter a relay with two different frequency |
| SQUELCH | Automatic (ASQ)- 9 automatic squelch levels |
| ROGER BEEP | Yes : TX beep end (off / 1-5) |
| RF GAIN | Yes : adjust sensibility on RX |
| MICRO GAIN | Yes : (via menu) adjusts the gain of increasing or decreasing the audio power (1-36levels) |
| CTCSS / DCS (encoder/decoder) | 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (RX setup / TX setup / RX+TX setup) |
| Filters NB/HI CUT | Yes : noise filters |
| NRC filter function | Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB |
| SPLIT function | Yes : allows to transmit and receive on two different frequencies in half duplex |
| DOUBLE WATCH function | Yes |
| VOX function | Yes : this feature triggers your microphone sound (hands free) (9 sensitivity levels + VOX delay time + VOX speaker) |
| TOT function | Yes : time out timer (off/adjustable up to 600 seconds) |
| CTCSS / DCS SCAN function | Yes : code search by SCAN |
| SCAN function | Yes : automatic search of busy channels |
| RESET function | Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions |
| Various functions | Selection FM deviation 4K (Default 2.5K)+ Emergency Channel + (+) 10kHz function / ECHO on/off (32levels) / MONITORING + OFFSET function + SWR protection + Beep function keys + Keypad lock |
| Bonus | Clarifier frequency display - Oversized radiators to dissipate heat |

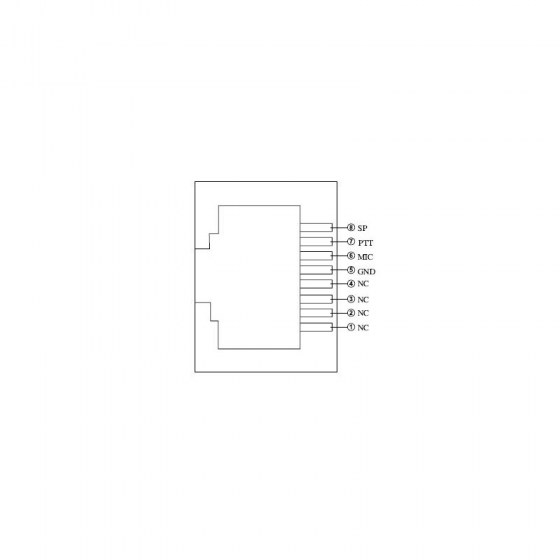

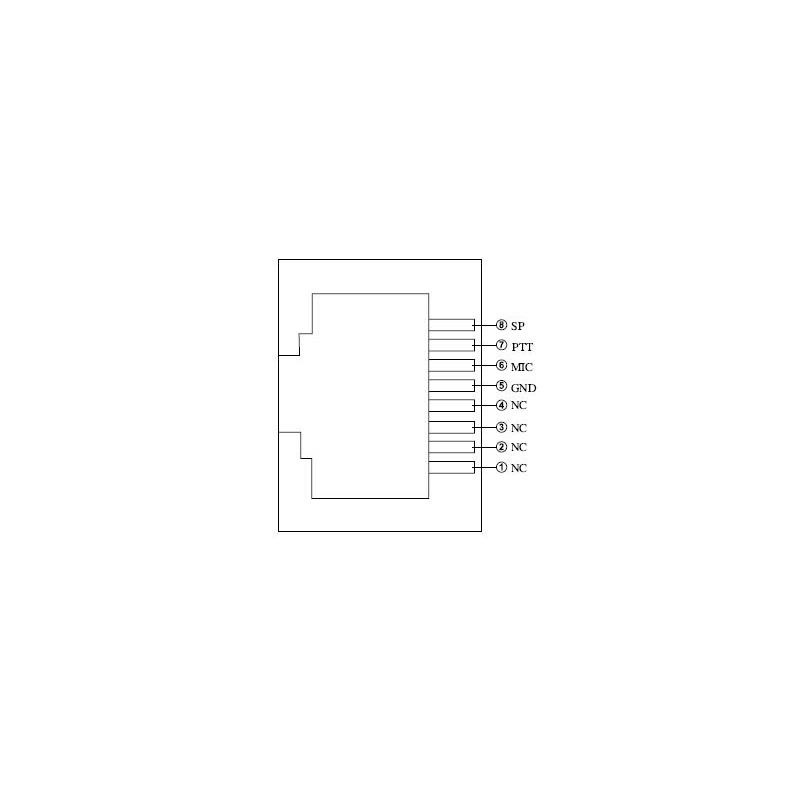

| Mike | electret type - UP/DOWN selection (plug in front pannel) Microphone type selection : electret or dynamic |
| Display | BIG LCD display + DIMMER function : 5 backlight dimmer levels available |
| Level display | BIG DISPLAYING FREQUENCY or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator |
| Options | Programming cable + software |
| Programmable by software | Yes |
| Includ | Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English |

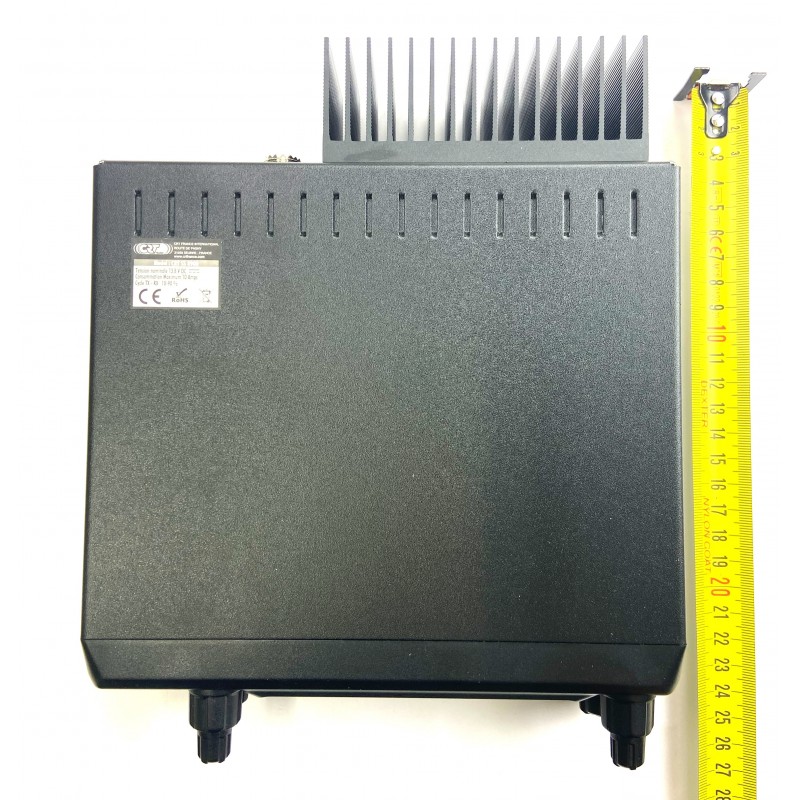

| Size | 200(l)x230(L)x60(h) ULTRA COMPACT SIZES ! |
| Weight | 1.5 kgs |
| Guaranty | 2 years |
